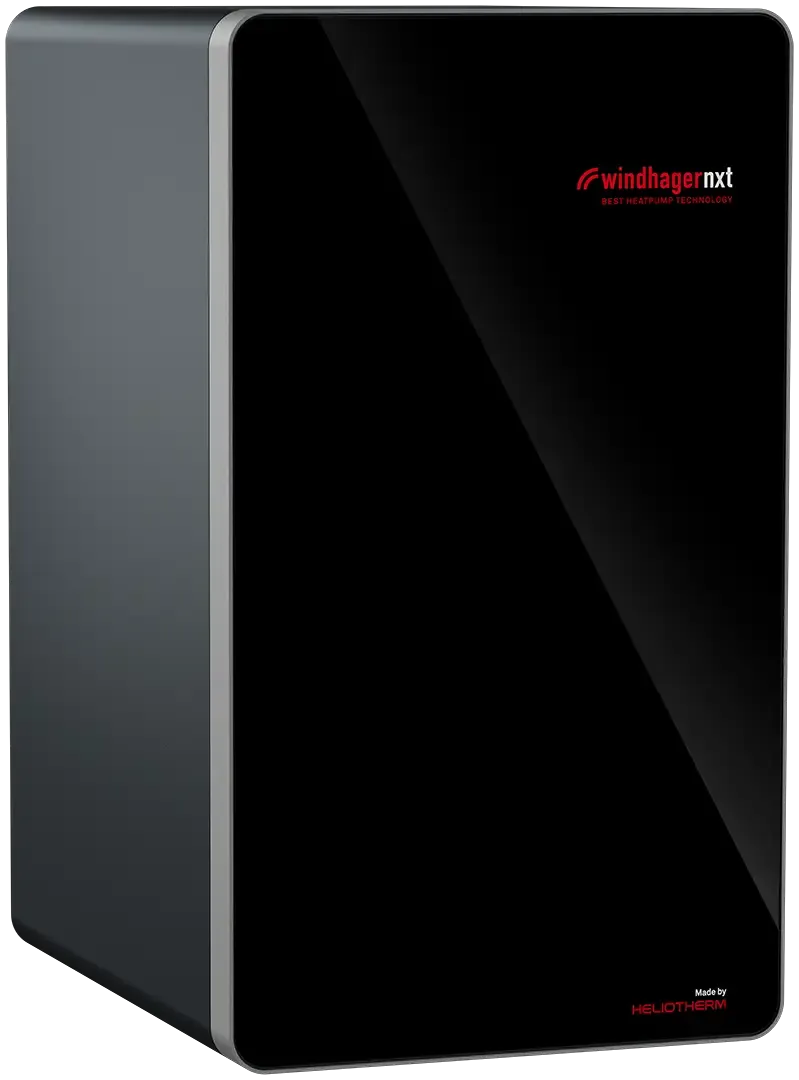

TerraWIN Deluxe (30-100kw)

Efficient heating & cooling for industry, commerce and large residential buildings

  • low operation noiseLow Operation Noise
  • environmentally friendly symbolEnvironmentally Friendly
  • phone app controlControl App
  • low maintenance symbolLow Maintenance

The TerraWIN DELUXE 30–100 kW represents a highly efficient, modulated geothermal energy supply on a large scale. It was developed to reliably, quietly, and sustainably supply hotels, commercial buildings, apartment buildings, district heating networks, and industrial applications with heat and – optional – cooling. Its modulating technology ensures maximum efficiency even with highly fluctuating loads, while its robust construction is designed for decades of continuous operation.

With power outputs ranging from approximately 31 to 93 kW or up to 100 kW, depending on the model, the TerraWIN DELUXE covers a wide spectrum – from upscale residential complexes to sophisticated commercial energy concepts.

KEY FEATURES AT A GLANCE

  • Combined heating and optional cooling functionality
  • SCOP ~6.0 at high power outputs
  • Optional passive and active cooling
  • Low operation noise
  • KNX & PV‑Ready – for integration with professional building technology and energy management
  • Low maintenance requirements
  • Seven year warranty
  • agricultural buildings symbolAgriculture
  • commercial sector symbolCommercial Sector
  • municipalities symbolMunicipalities
  • local heating networks symbolLocal Heating Networks
  • hotel industries symbolHotel Industry

TerraWIN DELUXE (30-100kw)

Type Ground Source Heat Pump
Model - TerraWIN 30 DELUXE 40 DELUXE 60 DELUXE 100 DELUXE
Heat Output kW  30.1 40.1 58.5 91.9
SCOP  ? ? ? ?
Sound - dB(A) 50 55 58 61
Refrigerant R410A
Power Supply 400v
Efficiency A+++
MES WiFi Compatibility Infinity PLUS with ethernet communications
  • 7 year warranty badge
  • MCS Certified

7 Year Warranty,  subject to terms and conditions.
