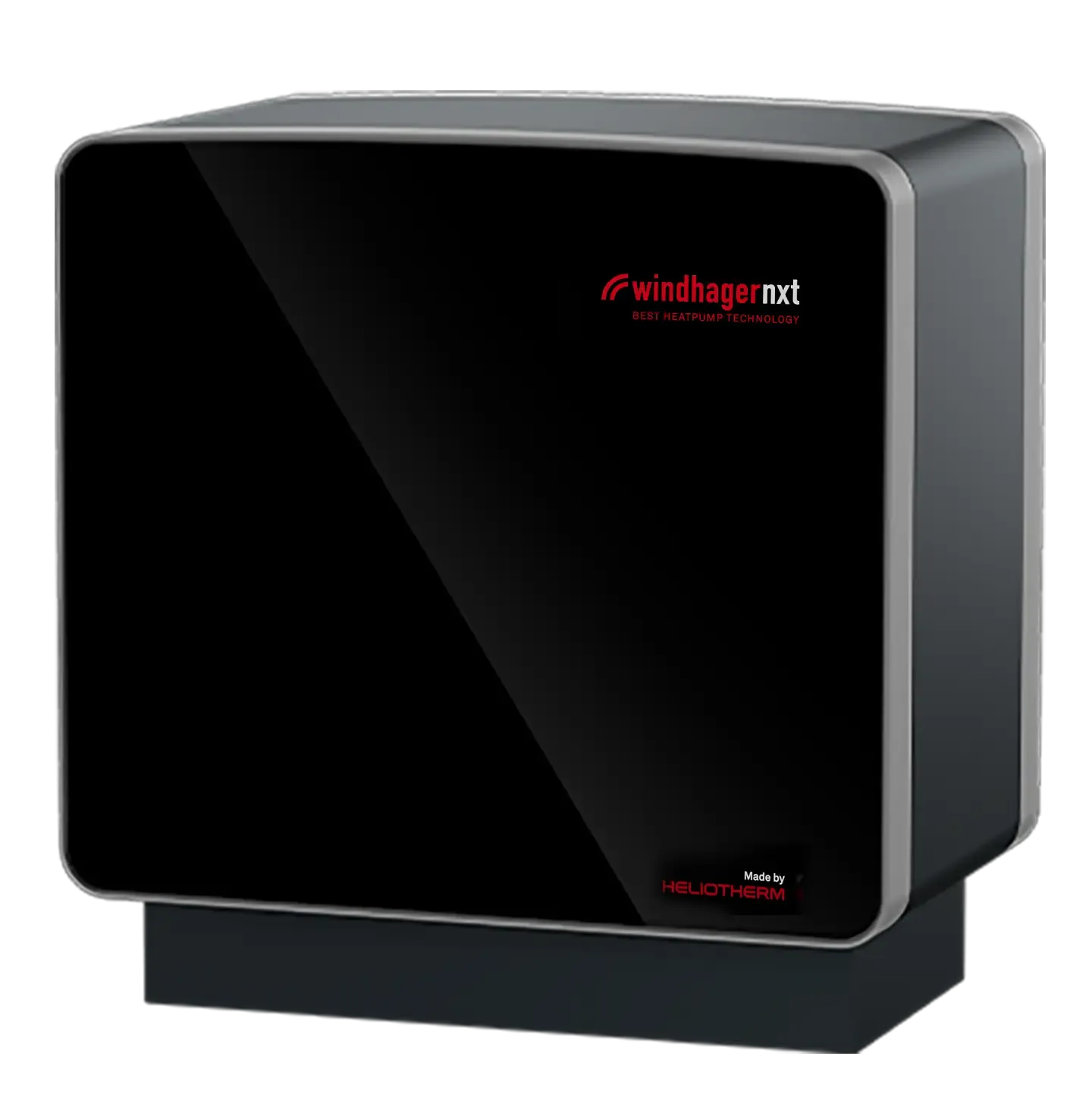

TerraWIN DELUXE NXT (3-15kW)
Taking geothermal energy to a new level
The TerraWIN NXT takes geothermal energy to a new level: a fully modulating brine/water heat pump with a SCOP of up to 6.3, flow temperatures up to 72 °C, and pleasantly low noise levels. It utilises the ground's constant energy throughout the year – via deep borehole or horizontal/circular trench collectors – and seamlessly adjusts its output to actual demand. This reduces start/stop losses, maximises the seasonal performance factor (SPF), and permanently lowers your operating costs. Thanks to R290 (propane) as a natural refrigerant, the TerraWIN NXT is also sustainable and future-proof.
KEY FEATURES AT A GLANCE
- High efficiency (SCOP 6+)
- Low operation noise
- Intelligent and highly efficient R290 technology
- Optional passive cooling function
- Low maintenance requirements
- Reliable operation all year round
- Five year warranty
TerraWIN DELUXE NXT (3-15kW)
| Type | Ground Source Heat Pump | |
|---|---|---|
| Model | TE10DXS | TE15DXS |
| Heating capacity range kW | 3.0 – 10.0 | 5.0 – 15.0 |
| B0/W35 - Heating Capacity | 6.6kW | 10.4kW |
| COP | 5.4 | 5.7 |
| B0/W55 - Heating Capacity | 6.5kW | 10.2kW |
| COP | 3.0 | 3.2 |
| SCOP Climate zone: Medium | 6.1 | 6.3 |
| Max flow temperature °C | 72 | 72 |
| Sound - dB(A) | 51 | 51 |
| Refrigerant | R290 | |
| Power Supply | 230v / 400v | |
| Efficiency | A+++ | |
5 Year Warranty, subject to terms and conditions.
