BioWIN (3-33kW)

Highly efficient compact pellet boiler

Fully Automated
Environmentally Friendly
Low Carbon
Low Maintenance

This state-of-the-art and extremely innovative pellet boiler provides homeowners with long- term, hassle-free and optimum efficiency levels of operation. Fully equipped with a high quality stainless steel burner, LowDust technology and a unique self- cleaning function, the BioWIN ensures a clean combustion process with minimal maintenance requirements.

BioWIN (3-33kw) features as standard an automatic heat exchanger cleaning function, ash can be simply removed via an ash bin directly below the burner bowl (BioWIN 3-26kW), or ash can be automatically removed from the boiler and compacted into an easily detachable remote ash bin below the fuel hopper for longer periods of ash removal (BioWIN 3-33kW).

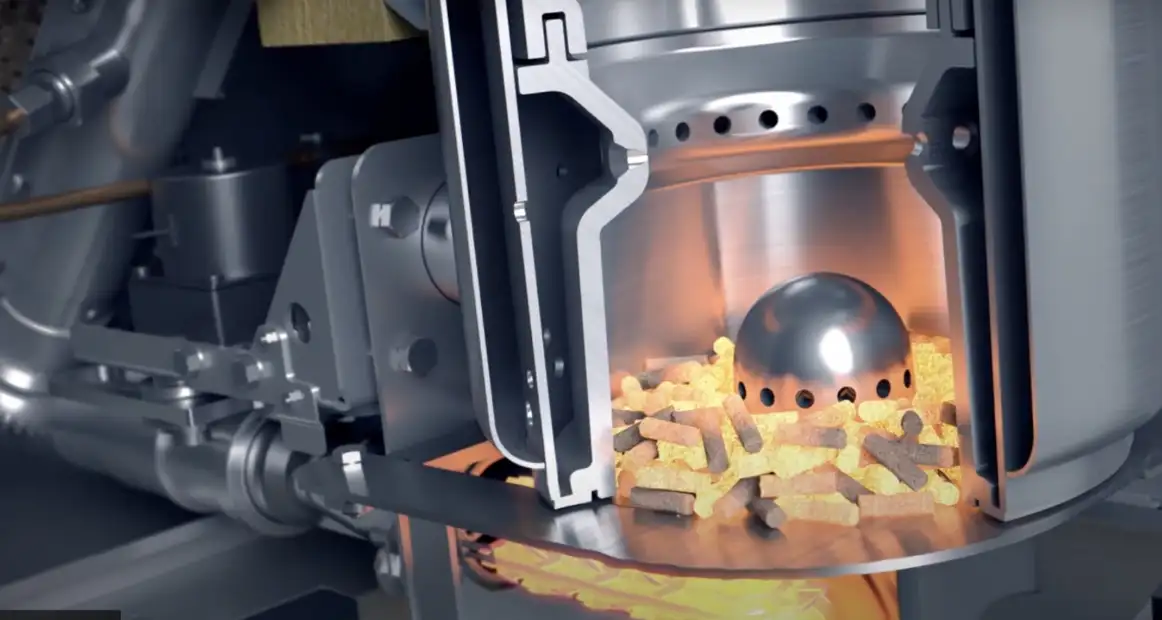

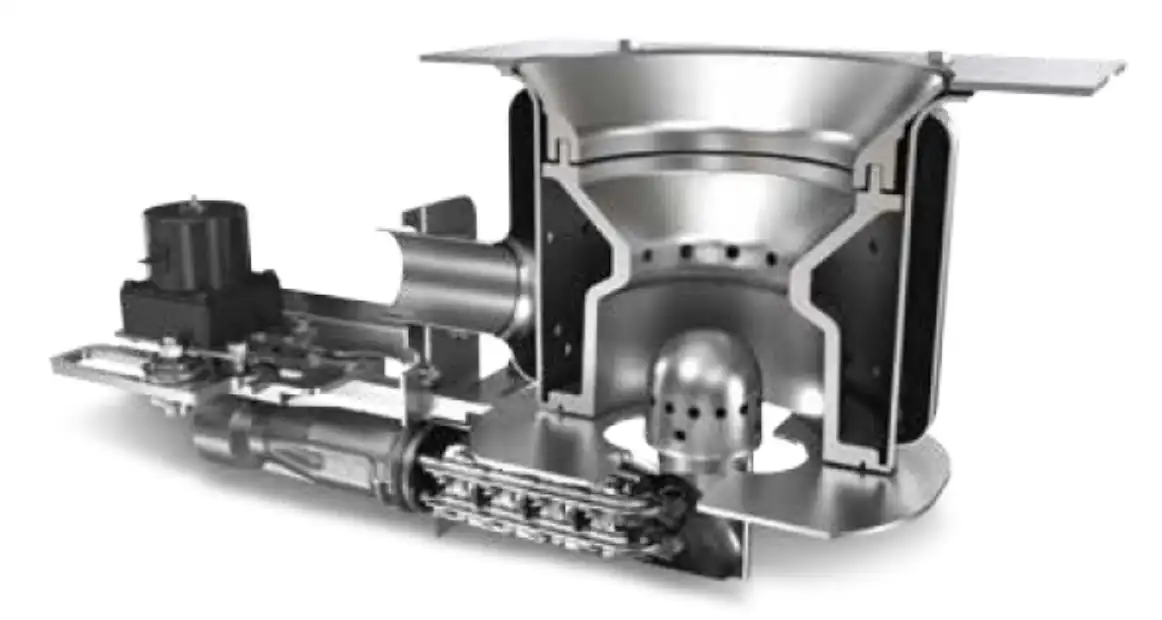

BioWIN 2 Touch burner bowl cut through image

BioWIN 2 Touch cut through illustration of burner bowl with burning pellets

Refurbishment / New Build
Detached House
Multiple Dwelling
Low Energy House

KEY FEATURES AT A GLANCE

Minimal space requirements
Remote monitoring options available when combined with MES Infinity
A buffer tank is not required
A choice between hand feed and Auto feed options
Automatic ash removal if you choose an Exklusiv model
Long maintenance / cleaning intervals
Self-cleaning function
Five year warranty

BioWIN (3-33kW)

Type	Wood Pellet Boiler
Fuel	6mm ENplus Wood Pellets
Feed Type	Hand Feed and Auto Feed Options
Output	5 output options between 3 – 33 kW
Efficiency	93%
Ash Removal	Automatic
Operation	Touch screen operation with built-in web server for remote access / monitoring.

BioWIN (3-26kW)

Type	Wood Pellet Boiler
Fuel	6mm ENplus Wood Pellets
Feed Type	Hand Feed and Auto Feed Options
Output	4 output options between 3 – 26 kW
Efficiency	93%
Ash Removal	Manual
Operation	Touch screen operation with built-in web server for remote access / monitoring.
